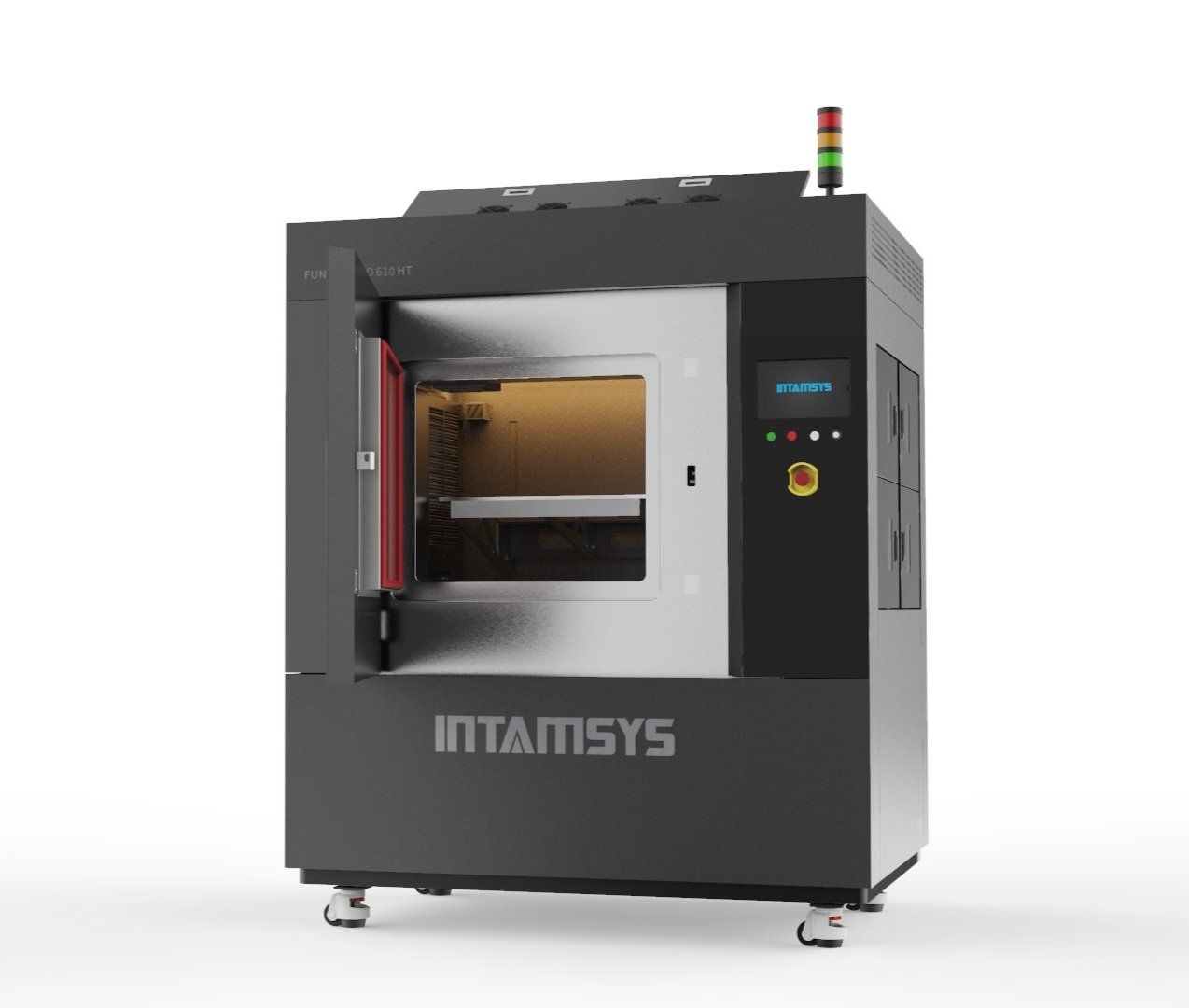

Intamsys FUNMAT PRO 610 HT

$139,500.00

  • Build Volume: 610 × 508 × 508 mm (24 × 20 × 20 in)

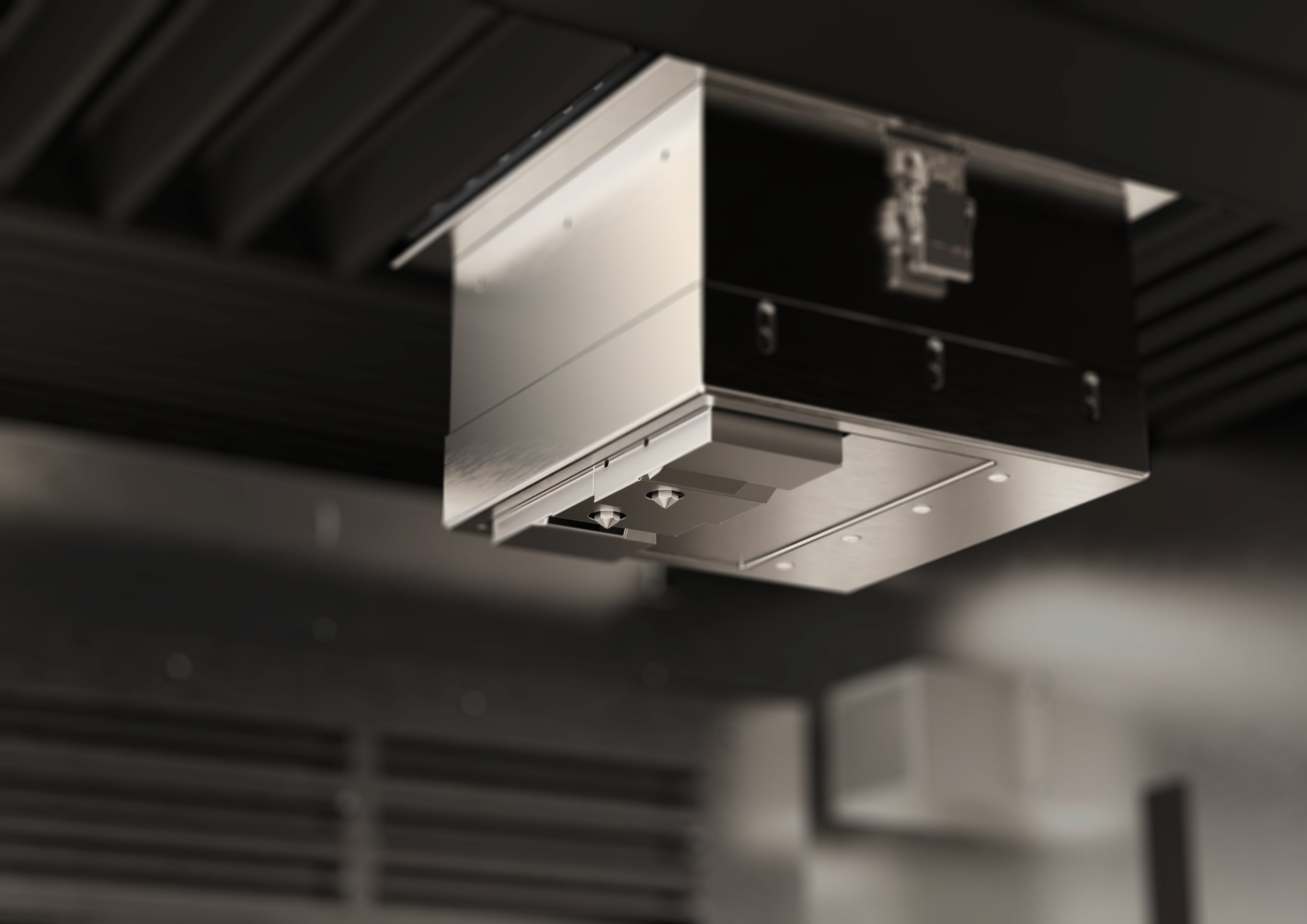

  • Number of nozzles: 2

  • Filament diameter: 1.75 mm

  • Nozzle Temperature: Max. 500 ℃ (932 ˚F)

  • Chamber Temperature: Max. 300 ℃ (572 ˚F)

  • Filament Chamber Temperature: 50 ℃ (122 ˚F)

  • Printing Speed: Max. 400 mm/s

  • Position Resolution: XY: 12.5 µm; Z: 1.25 µm

  • Materials: 26 (PEEK, PEEK-CF, PEEK-GF, PEKK, ULTEM (PEI), PPSU, PC, PC-HT, PC Alloys, PA, PA-HT, PA-CF, ASA, ABS, HIPS, etc.)

Quantity:
Add To Cart

  • Build Volume: 610 × 508 × 508 mm (24 × 20 × 20 in)

  • Number of nozzles: 2

  • Filament diameter: 1.75 mm

  • Nozzle Temperature: Max. 500 ℃ (932 ˚F)

  • Chamber Temperature: Max. 300 ℃ (572 ˚F)

  • Filament Chamber Temperature: 50 ℃ (122 ˚F)

  • Printing Speed: Max. 400 mm/s

  • Position Resolution: XY: 12.5 µm; Z: 1.25 µm

  • Materials: 26 (PEEK, PEEK-CF, PEEK-GF, PEKK, ULTEM (PEI), PPSU, PC, PC-HT, PC Alloys, PA, PA-HT, PA-CF, ASA, ABS, HIPS, etc.)

  • Build Volume: 610 × 508 × 508 mm (24 × 20 × 20 in)

  • Number of nozzles: 2

  • Filament diameter: 1.75 mm

  • Nozzle Temperature: Max. 500 ℃ (932 ˚F)

  • Chamber Temperature: Max. 300 ℃ (572 ˚F)

  • Filament Chamber Temperature: 50 ℃ (122 ˚F)

  • Printing Speed: Max. 400 mm/s

  • Position Resolution: XY: 12.5 µm; Z: 1.25 µm

  • Materials: 26 (PEEK, PEEK-CF, PEEK-GF, PEKK, ULTEM (PEI), PPSU, PC, PC-HT, PC Alloys, PA, PA-HT, PA-CF, ASA, ABS, HIPS, etc.)

Need a quote? Click HERE to fill out the form and ask a DISCOUNT — we'll get back to you quickly!

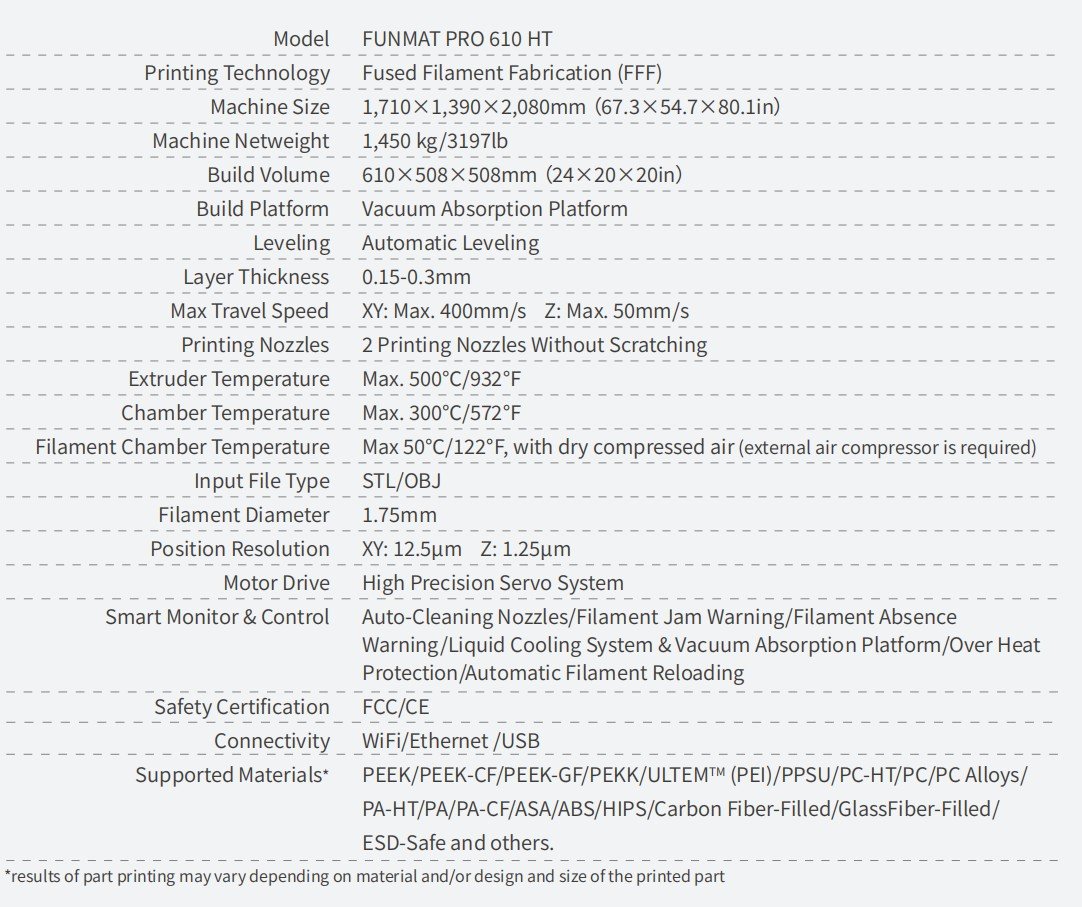

Technical Specification (Download PDF)
